17.5*13.6mm - 1814
Slim Profiles (under 20 mm)

17.5*13.6mm - 1814

Model CP-1814

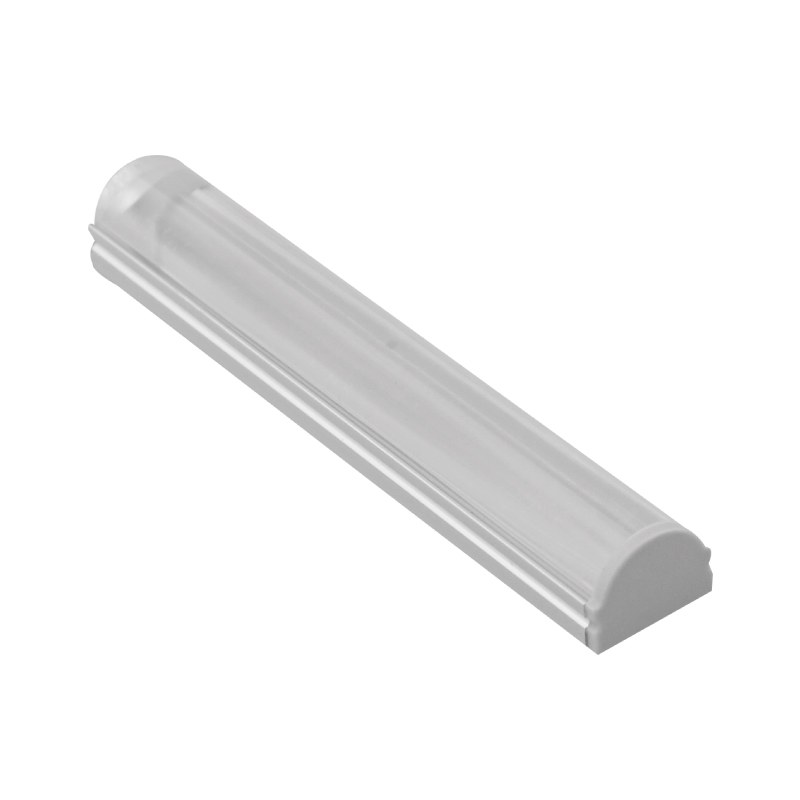

A deeper surface-mounted aluminium profile in the 17.5 × 13.6 mm section, giving extra internal clearance for higher-output and high-density COB strip. The taller 6063-T5 body provides additional heat-sink mass, while the curved opal PC cover spreads the light into a smooth, dot-free line. The channel accepts strip up to 12.3 mm wide, and the fixings are hidden inside the profile for a clean installed look.

17.5*13.6mm - 181417.5*13.6mm - 181417.5*13.6mm - 181417.5*13.6mm - 1814
FinishAnodised silver / black, or powder coated
Length1 m / 2 m / 3 m (cut to size on request)

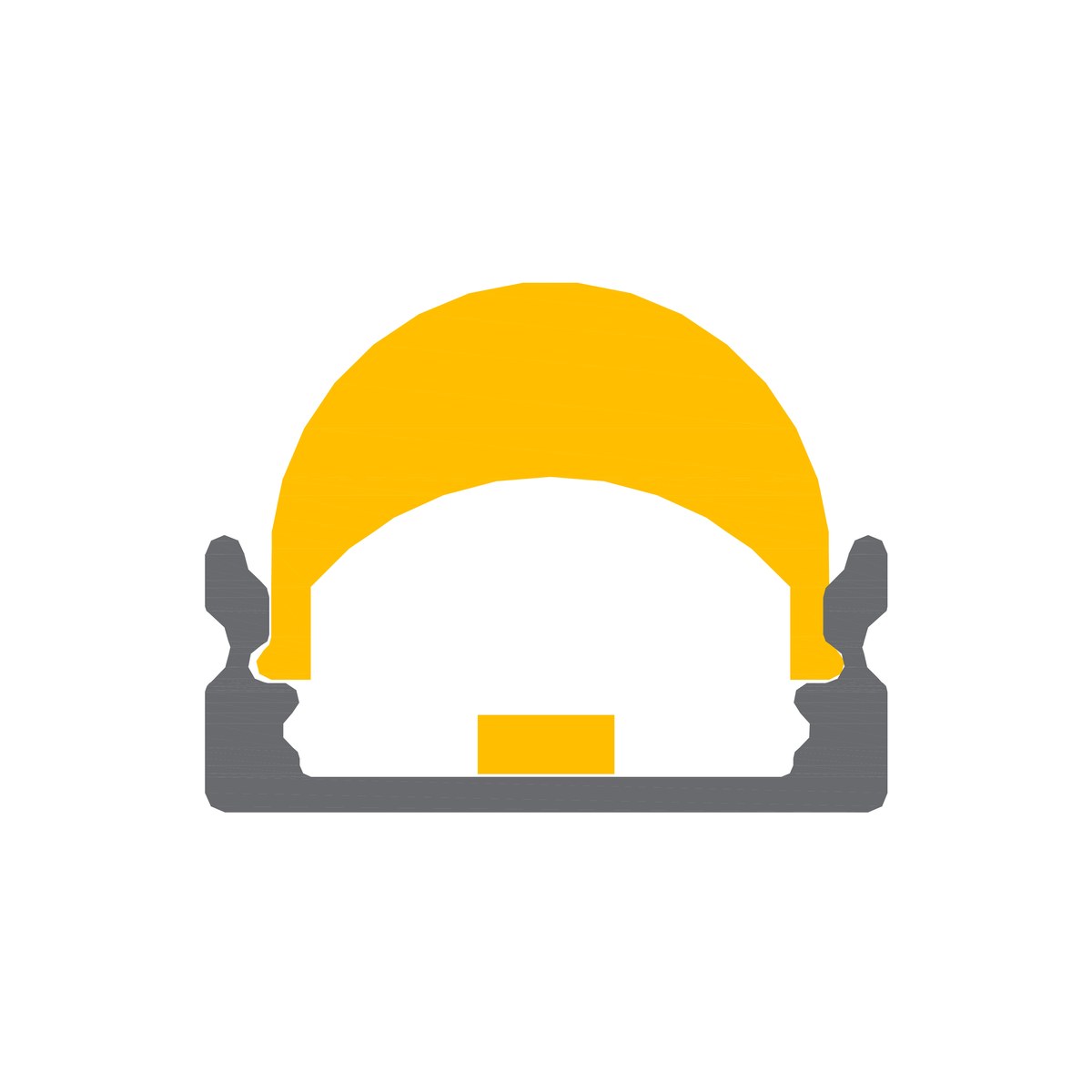

DiffuserCurved opal PC cover, snap-in
IncludedEnd caps, mounting clips, diffuser
Request a Quote Back to Products
Features

Why specifiers choose it

  • Deeper 13.6 mm body — extra heat-sink mass for high-output strip

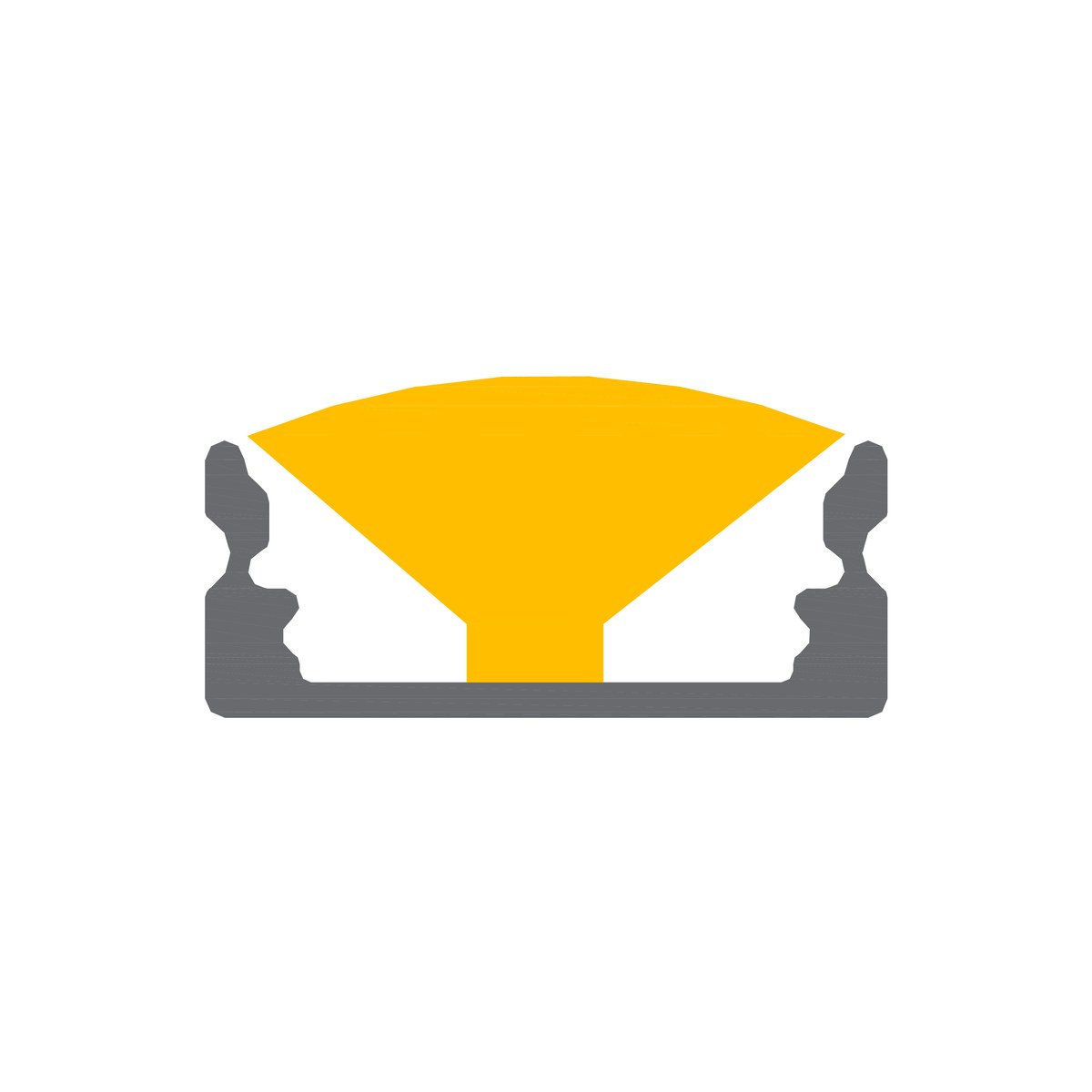

  • Curved opal PC cover for a smooth, dot-free line of light
  • Accepts LED strip up to 12.3 mm wide, including high-density COB
  • 6063-T5 aluminium body doubles as the heat sink
Specification

Technical parameters

FinishAnodised silver / black, or powder coated
Length1 m / 2 m / 3 m (cut to size on request)
DiffuserCurved opal PC cover, snap-in
IncludedEnd caps, mounting clips, diffuser
Material6063-T5 aluminium extrusion
MountingSurface mounted with clips / screws
Warranty5 years
IP RatingIP20
PCB WidthUp to 12.3 mm

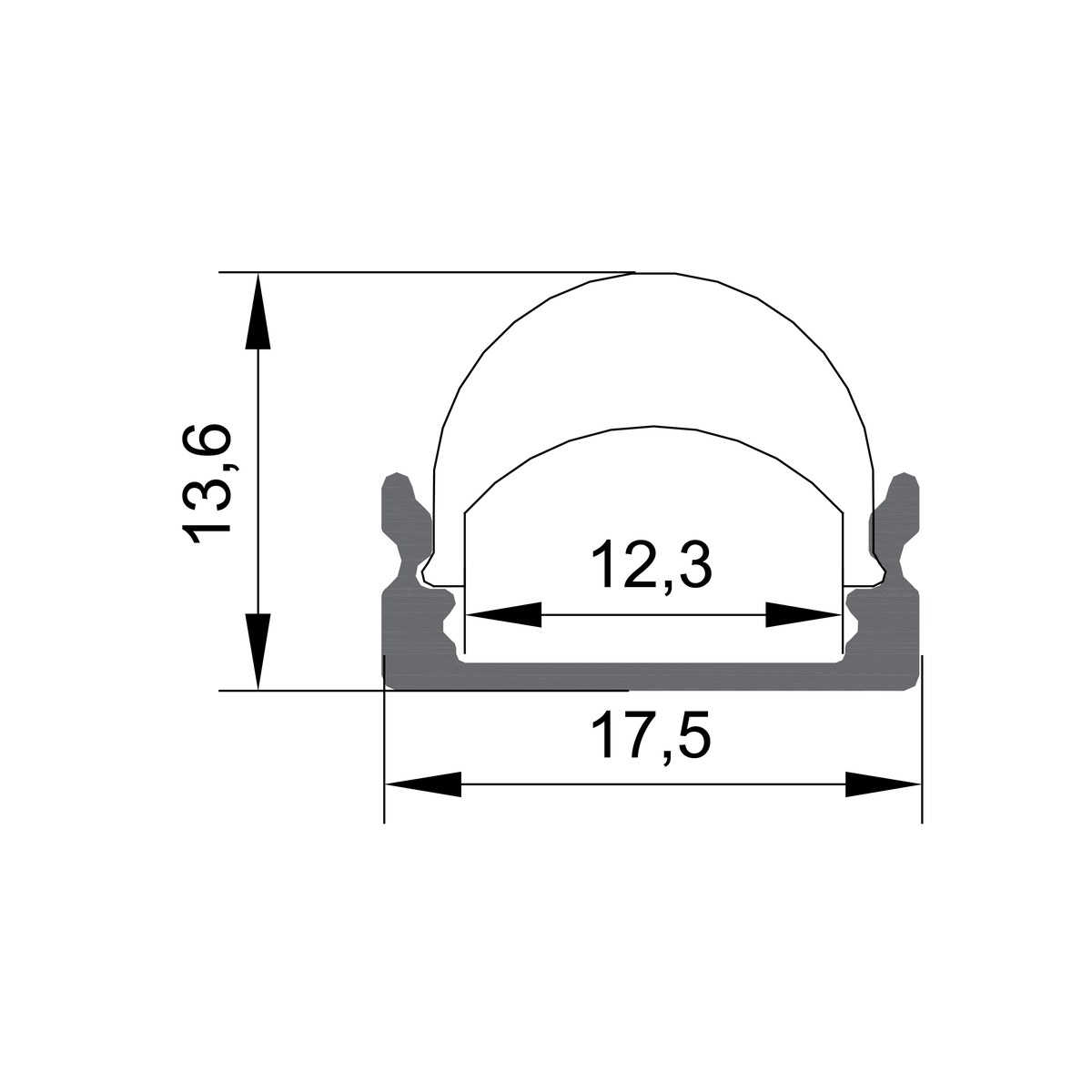

Profile Size17.5 × 13.6 mm
FAQ

Common questions

What is the minimum order quantity (MOQ)?
Stocked profiles can be ordered from 100 pieces per specification. Smaller trial quantities are available on request.
Can profiles be cut to custom lengths?
Yes. Profiles are supplied in 1 m, 2 m and 3 m lengths and can be cut to your exact site schedule, with end caps fitted and each piece labelled by room or floor.
What is the lead time?
Stocked profiles ship within 3 days. Custom anodised colours and cut-to-length orders are quoted on request.
What warranty do you offer?
LED strip is covered for 3 or 5 years depending on specification, and aluminium profiles are warranted against manufacturing defects.
Can I order samples first?
Yes. Send a drawing, spec or competitor sample and we will return a finished sample you can hold within five days.
Do you offer custom profiles or finishes?
Yes. We design custom aluminium sections to your drawing and finish profiles in anodised silver, black or powder coat to any RAL reference.
