17.5*8.4mm - 1809B
Slim Profiles (under 20 mm)

17.5*8.4mm - 1809B

Model CP-1809B

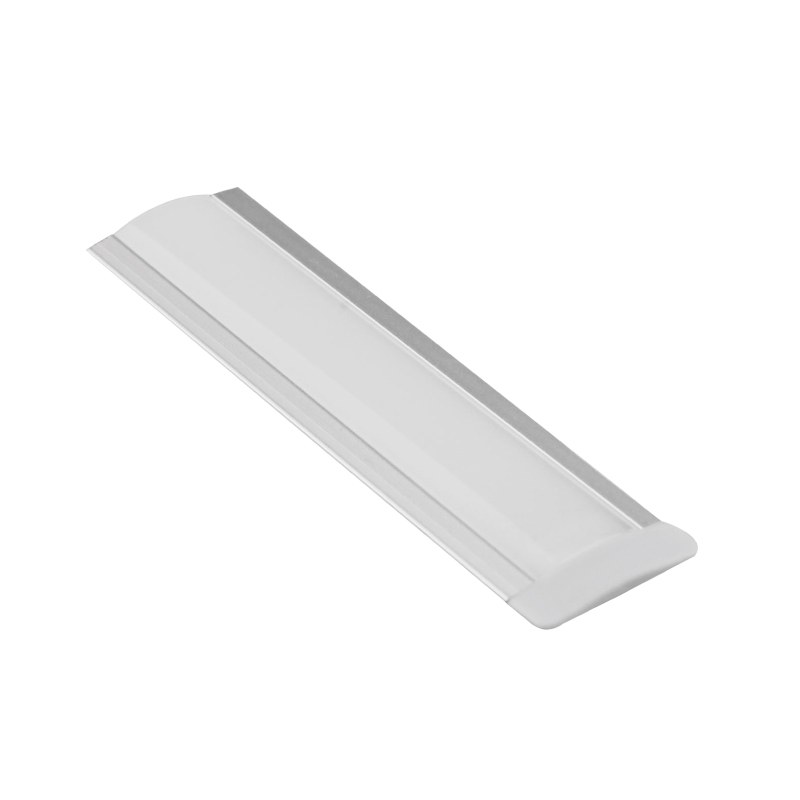

A compact surface-mounted aluminium profile in the 17.5 × 8.4 mm section, fitted with a curved opal PC cover for a soft, dot-free line of light. The internal channel takes standard and COB strip up to 12.5 mm wide, and the 6063-T5 aluminium body doubles as the heat sink to keep junction temperatures down. Fixing screws sit inside the channel and disappear once the cover is clipped on, giving a clean finish on cabinet, shelf and joinery lighting.

17.5*8.4mm - 1809B17.5*8.4mm - 1809B17.5*8.4mm - 1809B17.5*8.4mm - 1809B
FinishAnodised silver / black, or powder coated
Length1 m / 2 m / 3 m (cut to size on request)
DiffuserCurved opal PC cover, snap-in
IncludedEnd caps, mounting clips, diffuser
Request a Quote Back to Products
Features

Why specifiers choose it

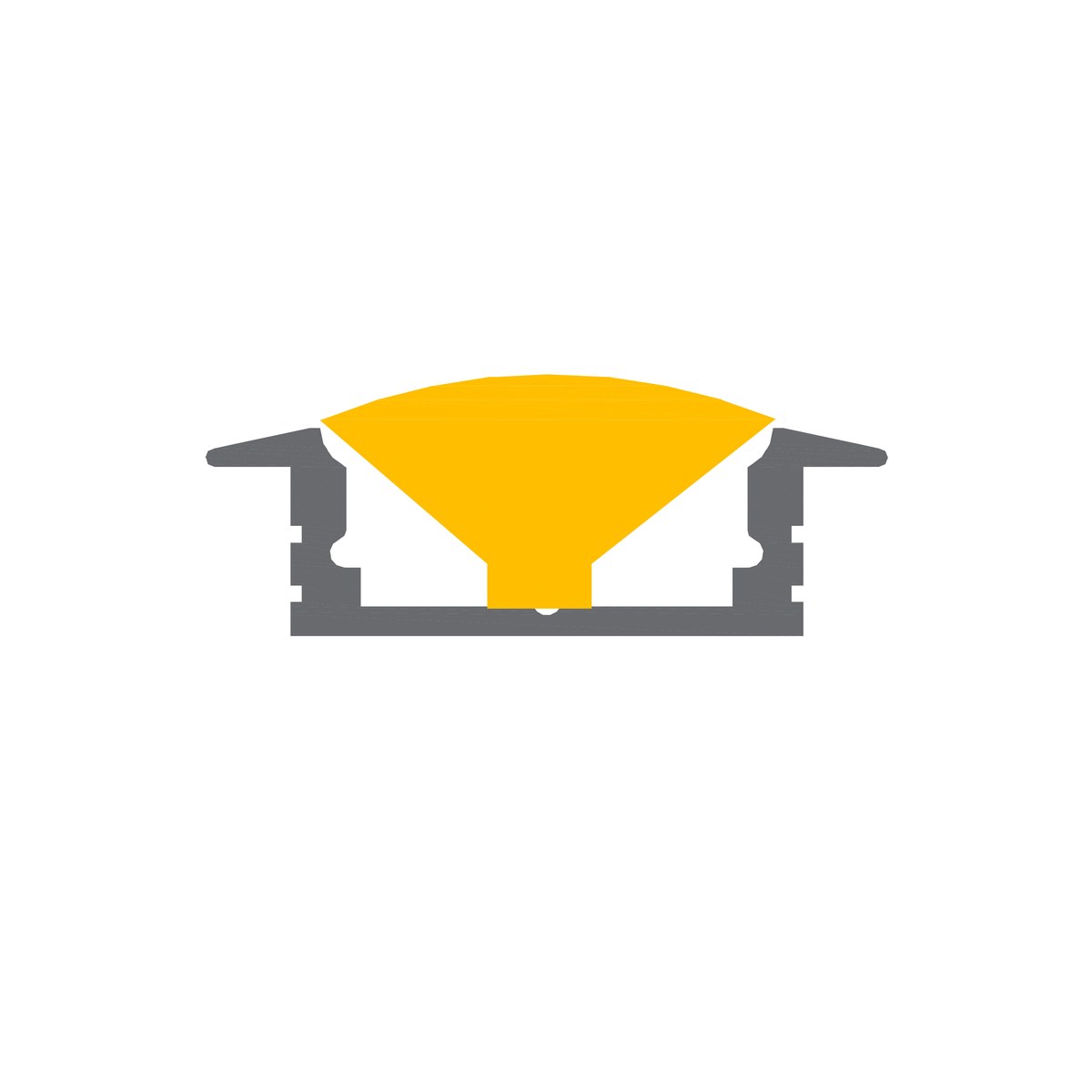

  • Curved opal PC cover — soft, dot-free light with no visible LED points
  • Fixing screws hidden inside the channel for a clean installed finish
  • Accepts LED strip up to 12.5 mm wide, including COB
  • 6063-T5 aluminium body doubles as the heat sink
Specification

Technical parameters

FinishAnodised silver / black, or powder coated
Length1 m / 2 m / 3 m (cut to size on request)
DiffuserCurved opal PC cover, snap-in
IncludedEnd caps, mounting clips, diffuser
Material6063-T5 aluminium extrusion
MountingSurface mounted with clips / screws
Warranty5 years
IP RatingIP20
PCB WidthUp to 12.5 mm

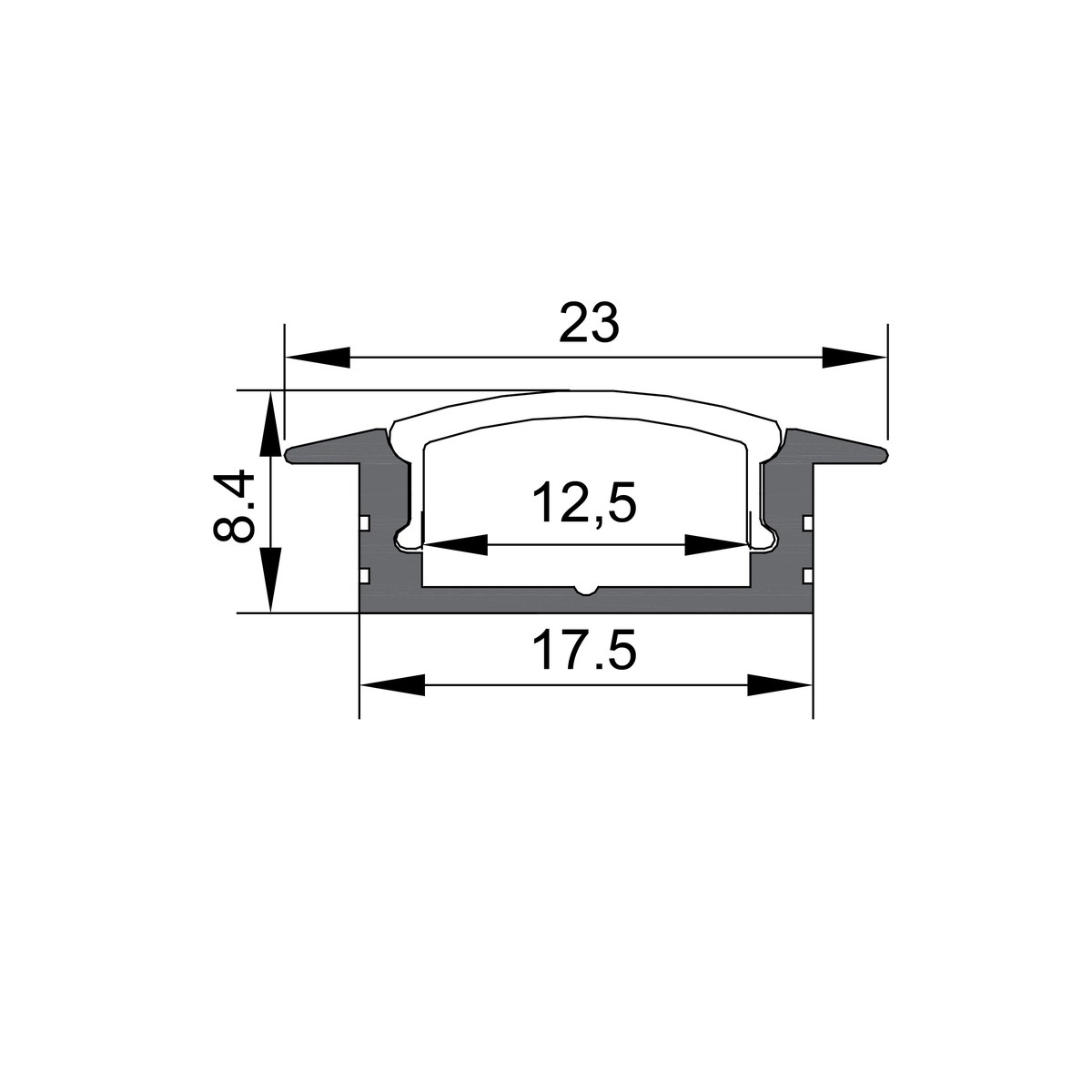

Profile Size17.5 × 8.4 mm
FAQ

Common questions

What is the minimum order quantity (MOQ)?
Stocked profiles can be ordered from 100 pieces per specification. Smaller trial quantities are available on request.
Can profiles be cut to custom lengths?
Yes. Profiles are supplied in 1 m, 2 m and 3 m lengths and can be cut to your exact site schedule, with end caps fitted and each piece labelled by room or floor.
What is the lead time?
Stocked profiles ship within 3 days. Custom anodised colours and cut-to-length orders are quoted on request.
What warranty do you offer?
LED strip is covered for 3 or 5 years depending on specification, and aluminium profiles are warranted against manufacturing defects.
Can I order samples first?
Yes. Send a drawing, spec or competitor sample and we will return a finished sample you can hold within five days.
Do you offer custom profiles or finishes?
Yes. We design custom aluminium sections to your drawing and finish profiles in anodised silver, black or powder coat to any RAL reference.
