16*71mm - 1671
Slim Profiles (under 20 mm)

16*71mm - 1671

Model CP-1671

A 16 × 71 mm aluminium profile for LED strip lighting. Machined from 6063-T5 aluminium, the extrusion carries heat away from the strip and doubles as its housing. Supplied with a snap-in opal diffuser, end caps and mounting clips, and available anodised, powder coated or cut to length.

16*71mm - 167116*71mm - 167116*71mm - 167116*71mm - 1671
FinishAnodised silver / black, or powder coated
Length1 m / 2 m / 3 m (cut to size on request)
DiffuserOpal PC, snap-in
IncludedEnd caps, mounting clips, diffuser
Request a Quote Back to Products
Features

Why specifiers choose it

  • 16 × 71 mm 6063-T5 aluminium section
  • Snap-in opal diffuser for a soft, dot-free line of light
  • Aluminium body doubles as the heat sink
  • Supplied with end caps, mounting clips and diffuser
Specification

Technical parameters

FinishAnodised silver / black, or powder coated
Length1 m / 2 m / 3 m (cut to size on request)
DiffuserOpal PC, snap-in
IncludedEnd caps, mounting clips, diffuser
Material6063-T5 aluminium extrusion
MountingSurface mounted with clips / screws
Warranty5 years
IP RatingIP20

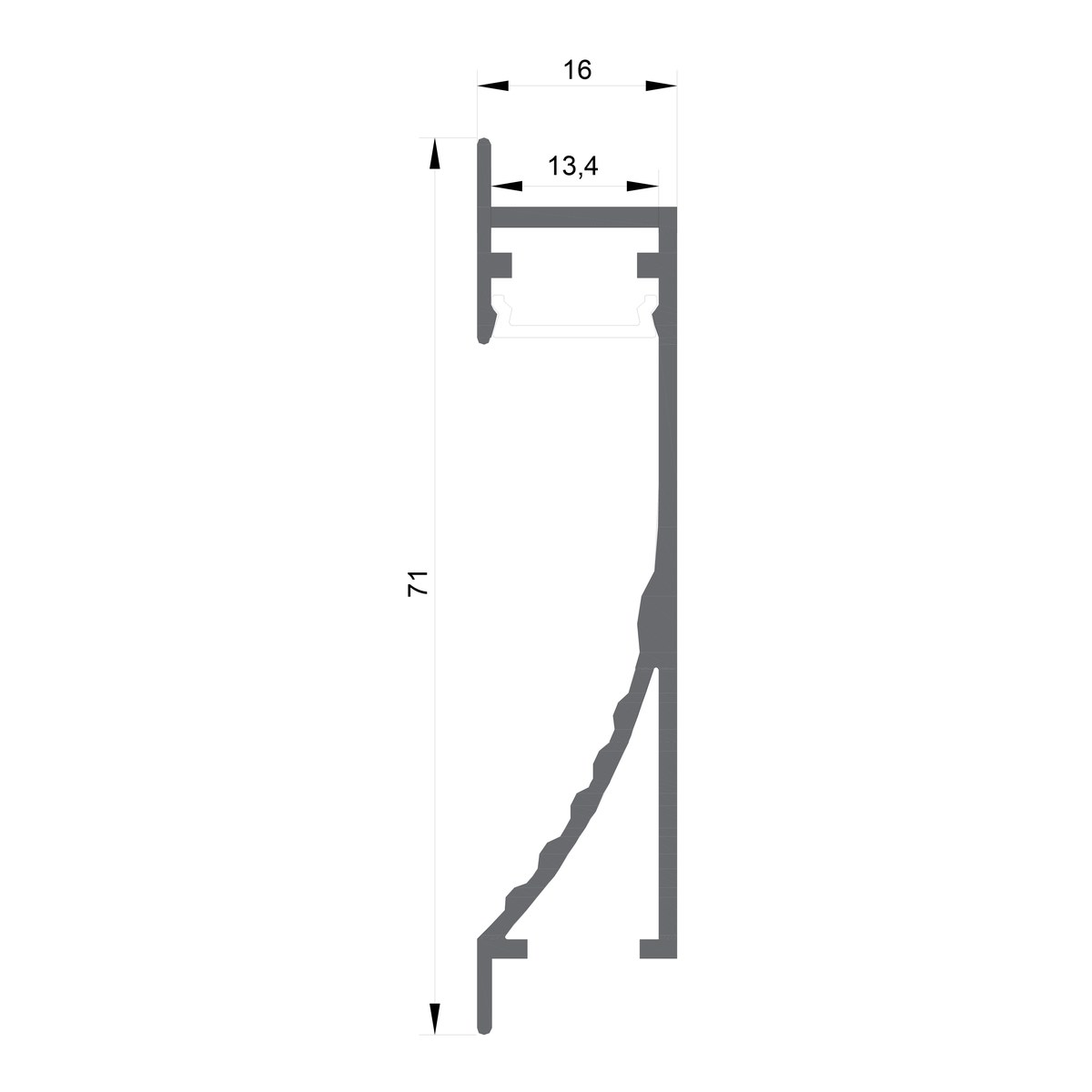

Profile Size16 × 71 mm
FAQ

Common questions

What is the minimum order quantity (MOQ)?
Stocked profiles can be ordered from 100 pieces per specification. Smaller trial quantities are available on request.
Can profiles be cut to custom lengths?
Yes. Profiles are supplied in 1 m, 2 m and 3 m lengths and can be cut to your exact site schedule, with end caps fitted and each piece labelled by room or floor.
What is the lead time?
Stocked profiles ship within 3 days. Custom anodised colours and cut-to-length orders are quoted on request.
What warranty do you offer?
LED strip is covered for 3 or 5 years depending on specification, and aluminium profiles are warranted against manufacturing defects.
Can I order samples first?
Yes. Send a drawing, spec or competitor sample and we will return a finished sample you can hold within five days.
Do you offer custom profiles or finishes?
Yes. We design custom aluminium sections to your drawing and finish profiles in anodised silver, black or powder coat to any RAL reference.
